Pictoform® 36

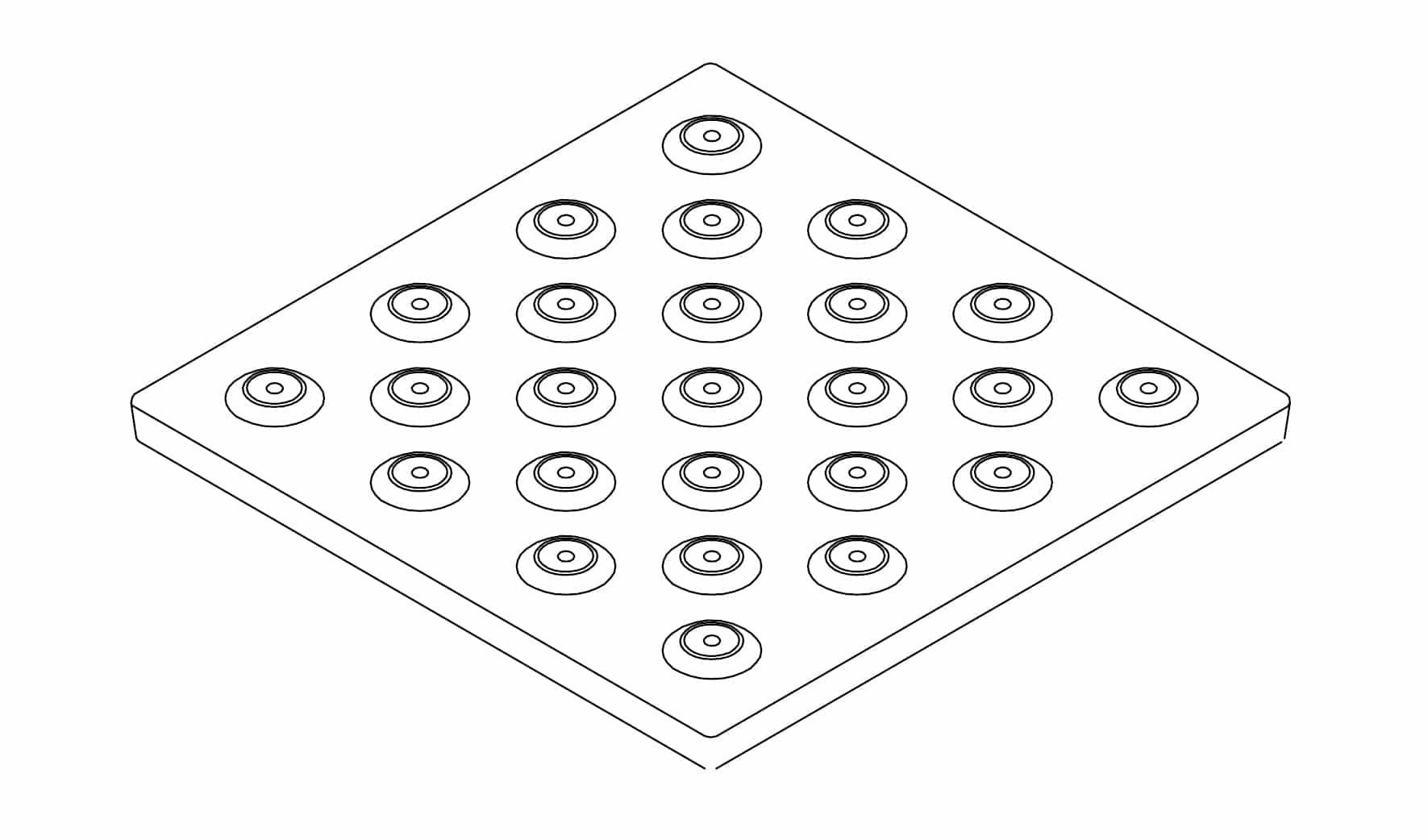

Pictoform® 36 Cast Iron Rails are manufactured with moulded-in tactile markings in the form of marker studs. For optimal guidance, it is recommended to establish attention areas at the start and end of the guidance line as well as at changes in direction or places where increased attention is needed.
Pictoform® 36 Cast iron clamps are produced in sizes:
> L 300 x W 300 x H 8 mm
> L 350 x W 350 x H 8 mm
> L 400 x W 400 x H 8 mm
Pictoform®36 elements fulfil the requirements of the EU guideline ISO/DIS 21542 for signage.
The cast iron patinates to a deep brown tone. The dark colour of cast iron corresponds approximately to NCS code S6020-Y70R. To fulfil accessibility requirements, there must be a lightness contrast of 0.4 compared to the surrounding coating.
Our Pictoform® cast iron guide rails are EPD certified and developed according to recognised European and international standards, including the requirements of EN 15804. The guide rails are cast in 100 % recycled iron, so the carbon footprint is minimised.
Item number
No SKU available
Material
Untreated cast iron
Dimension
L 300 x W 300 x H 8 mm
L 350 x W 350 x H 8 mm
L 400 x W 400 x H 8 mm
Assembly
The tiles are moulded as a cast iron shell with the inner cavity filled with C25/30 concrete.
They are laid like regular paving tiles - on a firm base of well-compacted ballast and levelling sand, with a joint width of 3-5 mm and sealed with jointing sand.
Weight
L 300 x W 300 mm / 5.4 kg
L 350 x W 350 mm / 6.7 kg
L 400 x W 400 mm / 9.6 kg
Additional information
Clinker tiles with knob elements are produced in cast iron in the same design as the tiles.
Pictoform® 36 Cast Iron Rails are manufactured with moulded-in tactile markings in the form of marker studs. For optimal guidance, it is recommended to establish attention areas at the start and end of the guidance line as well as at changes in direction or places where increased attention is needed.
Pictoform® 36 Cast iron clamps are produced in sizes:
> L 300 x W 300 x H 8 mm
> L 350 x W 350 x H 8 mm
> L 400 x W 400 x H 8 mm
Pictoform®36 elements fulfil the requirements of the EU guideline ISO/DIS 21542 for signage.
The cast iron patinates to a deep brown tone. The dark colour of cast iron corresponds approximately to NCS code S6020-Y70R. To fulfil accessibility requirements, there must be a lightness contrast of 0.4 compared to the surrounding coating.
Our Pictoform® cast iron guide rails are EPD certified and developed according to recognised European and international standards, including the requirements of EN 15804. The guide rails are cast in 100 % recycled iron, so the carbon footprint is minimised.
Knud Holscher industrial design
Knud Holscher (b. 1930) is a Danish architect and designer known for his functional, minimalist style. Pictoform® is created in collaboration with Knud Holscher. GH Form has received the Danish design award ID Prisen and the global design award iF Award with the Pictoform® series.
