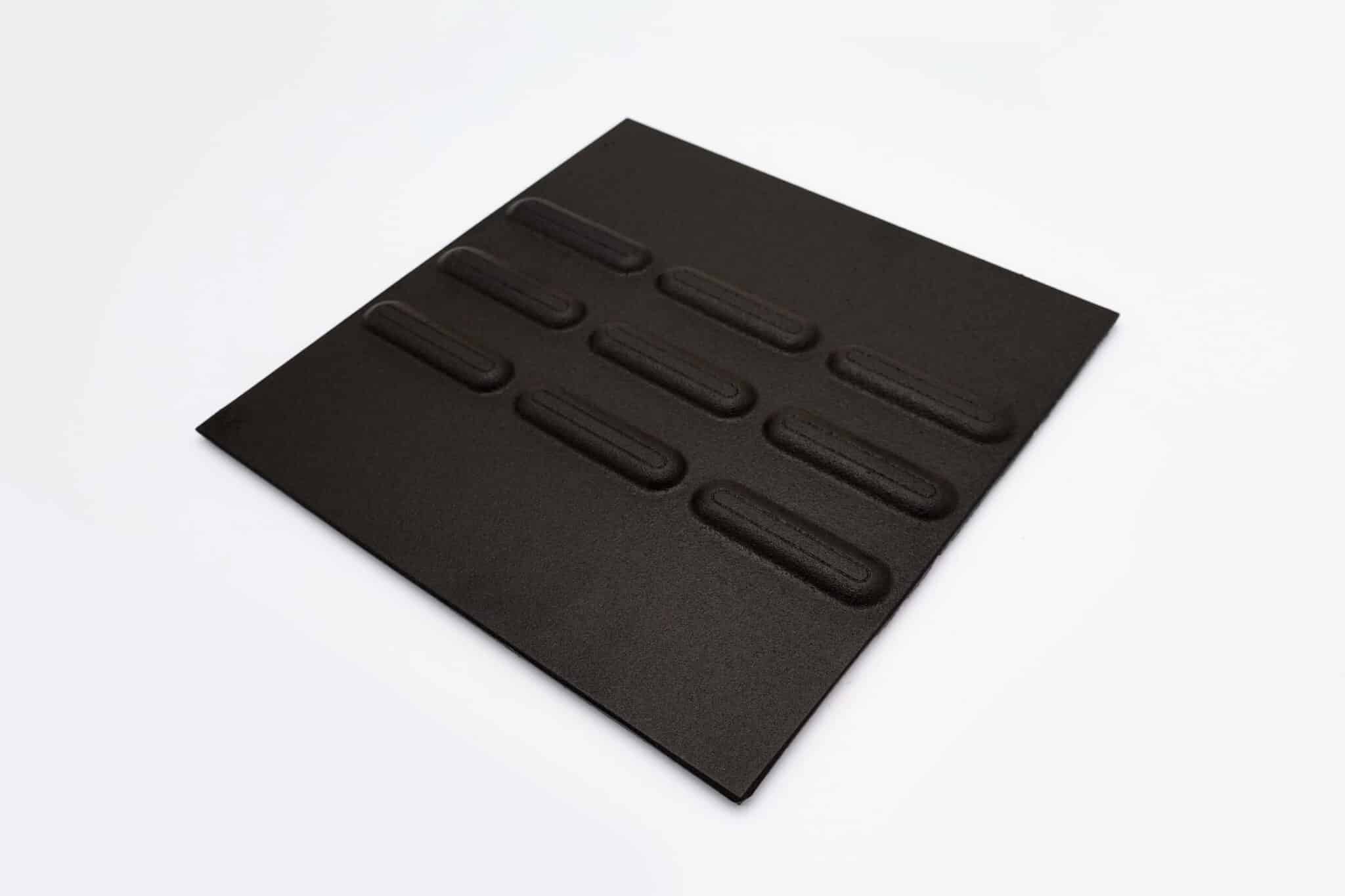

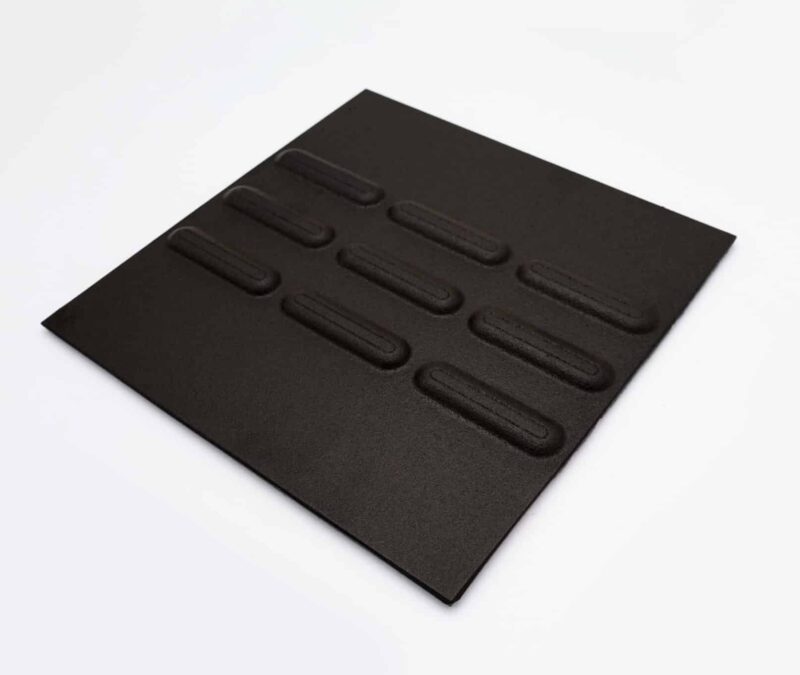

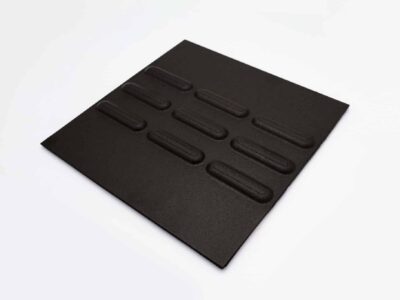

Pictoform® 26

Clinker with baffle

Ved Støbejernsklinkerne kan vælges ledelinje med én enkelt linje eller med 3 parallelle linjer i forskellige størrelser.

For optimal vejledning anbefales det at etablere opmærksomhedsfelter ved ledelinjens start og slutning samt ved retningsændringer eller steder, hvor øget opmærksomhed er nødvendig.

The cast iron patinates to a deep brown tone. The dark color of cast iron corresponds approximately to NCS code S6020-Y70R. To meet accessibility requirements, there must be a lightness contrast of 0.4 compared to the surrounding coating.

Our Pictoform® cast iron guardrails are EPD certified and developed according to recognized European and international standards, including the requirements of EN 15804. The guide rails are cast in 100 % recycled iron, so the carbon footprint is minimal.

Description

Ved Støbejernsklinkerne kan vælges ledelinje med én enkelt linje eller med 3 parallelle linjer i forskellige størrelser.

For optimal vejledning anbefales det at etablere opmærksomhedsfelter ved ledelinjens start og slutning samt ved retningsændringer eller steder, hvor øget opmærksomhed er nødvendig.

The cast iron patinates to a deep brown tone. The dark color of cast iron corresponds approximately to NCS code S6020-Y70R. To meet accessibility requirements, there must be a lightness contrast of 0.4 compared to the surrounding coating.

Our Pictoform® cast iron guardrails are EPD certified and developed according to recognized European and international standards, including the requirements of EN 15804. The guide rails are cast in 100 % recycled iron, so the carbon footprint is minimal.

Additional information

Product

Klinke med 3 x 26 mm bred ledeelement, Klinke med 4 x 26 mm bred ledeelement, Klinke med 9 x 26 mm bred ledeelement

Goal

L 300 x B 100 x H 8 mm, L 315 x B 100 x H 8 mm, L 325 x B 100 x H 8 mm, L 100 x B 400 x H 8 mm, L 300 x B 300 x H 8 mm

Designer

Knud Holscher industriel design & landskabsarkitekt Charlotte Skibsted

Material

Untreated cast iron

Mounting

The 8 mm high cast iron tiles are stapled to the existing tiling. The underside of the clinker is cast with grooves for optimal adhesion.

Warranty

10 years
