Description

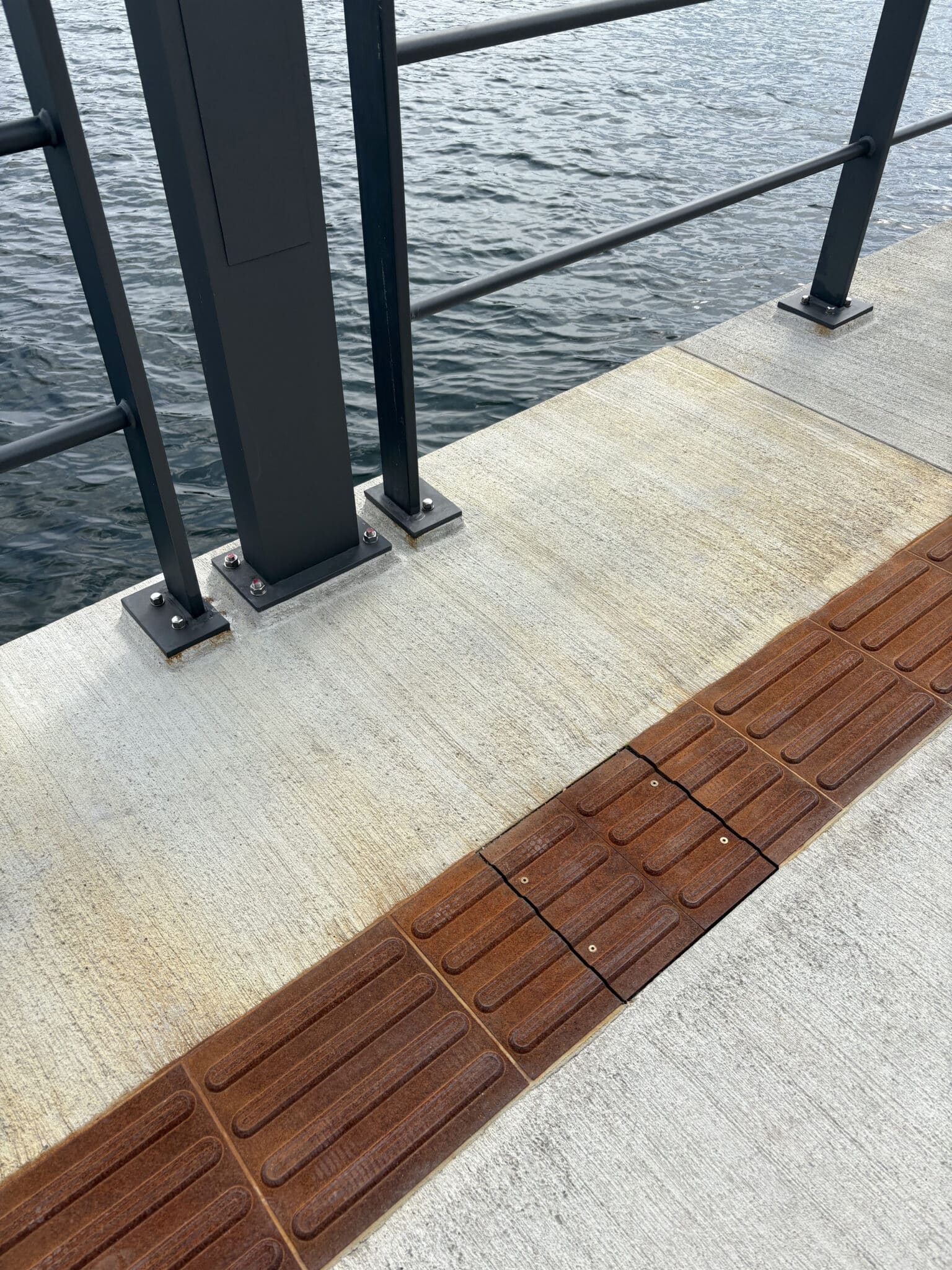

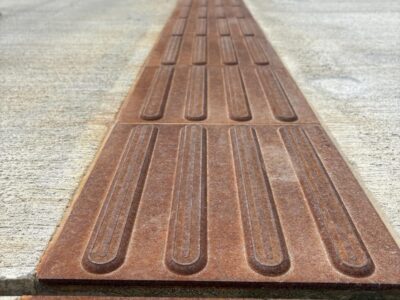

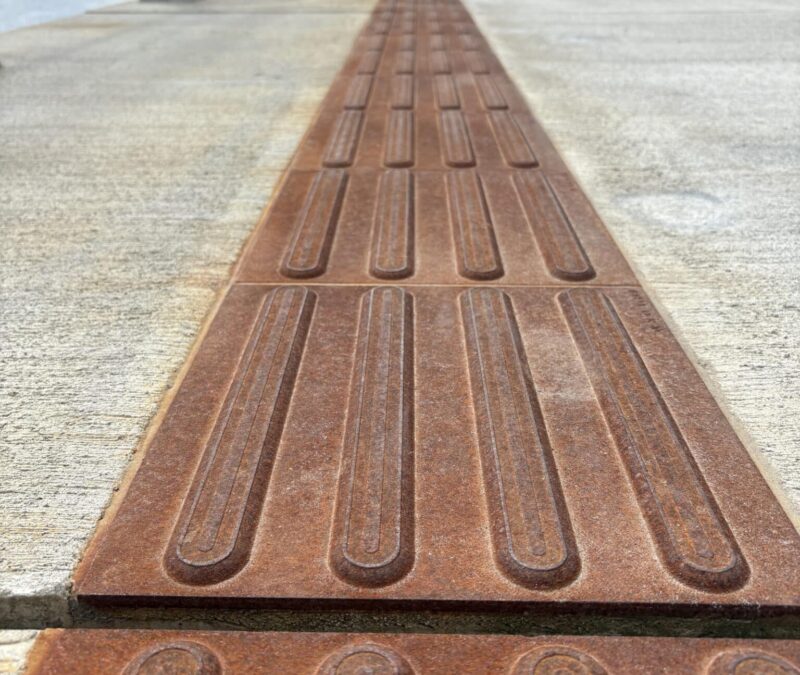

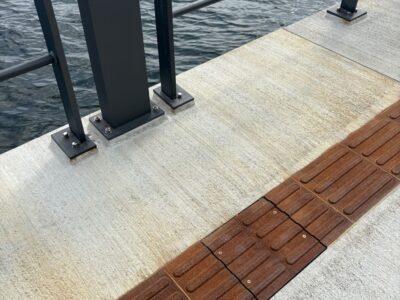

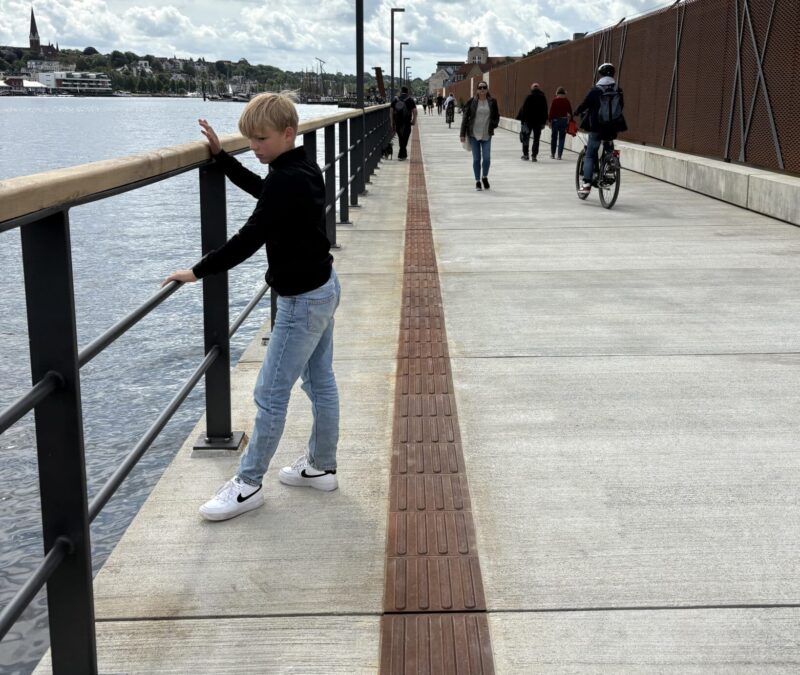

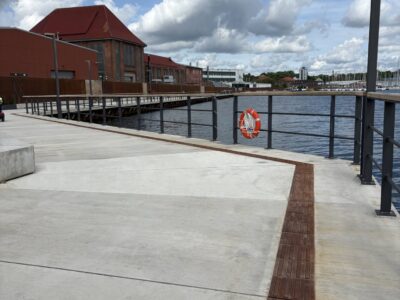

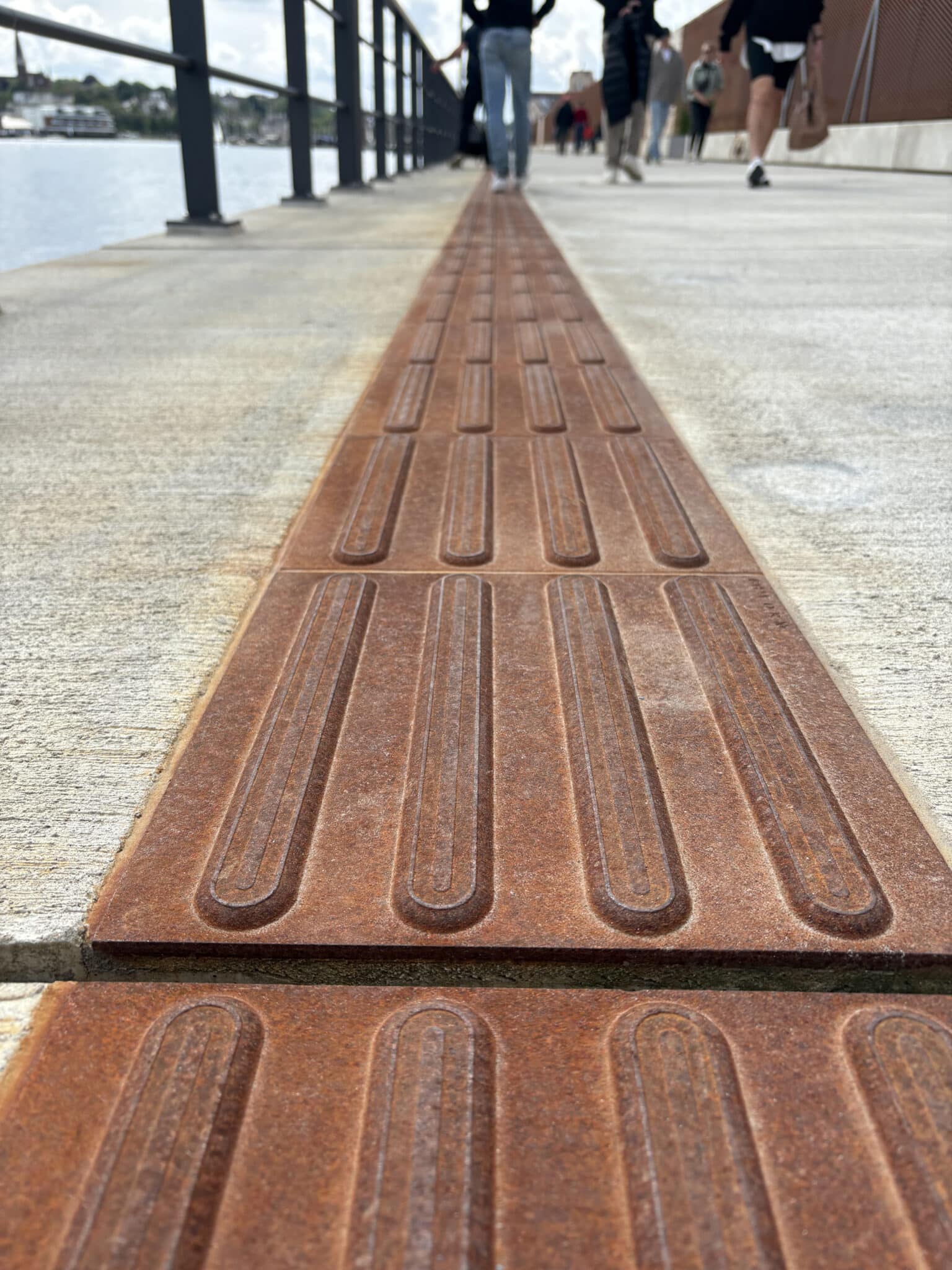

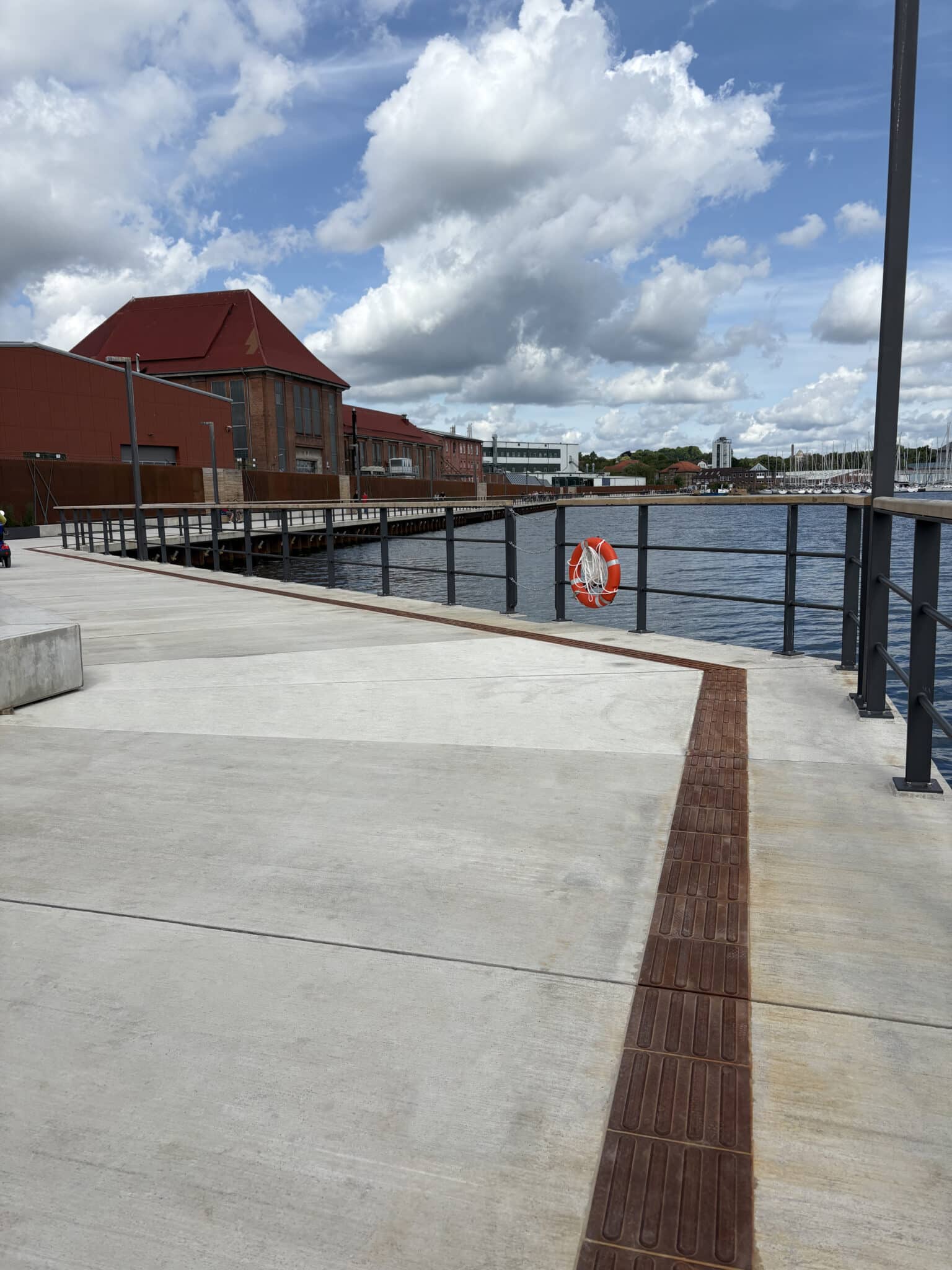

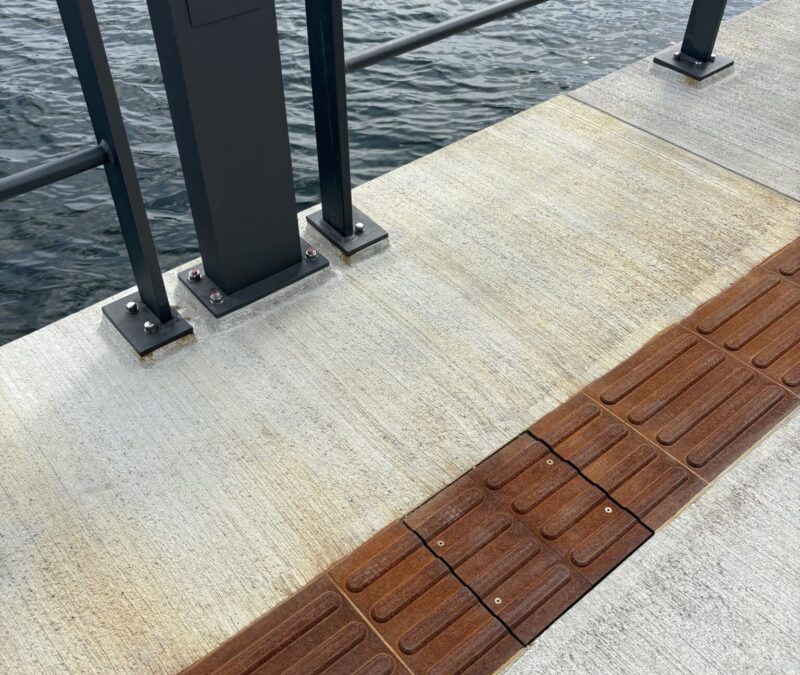

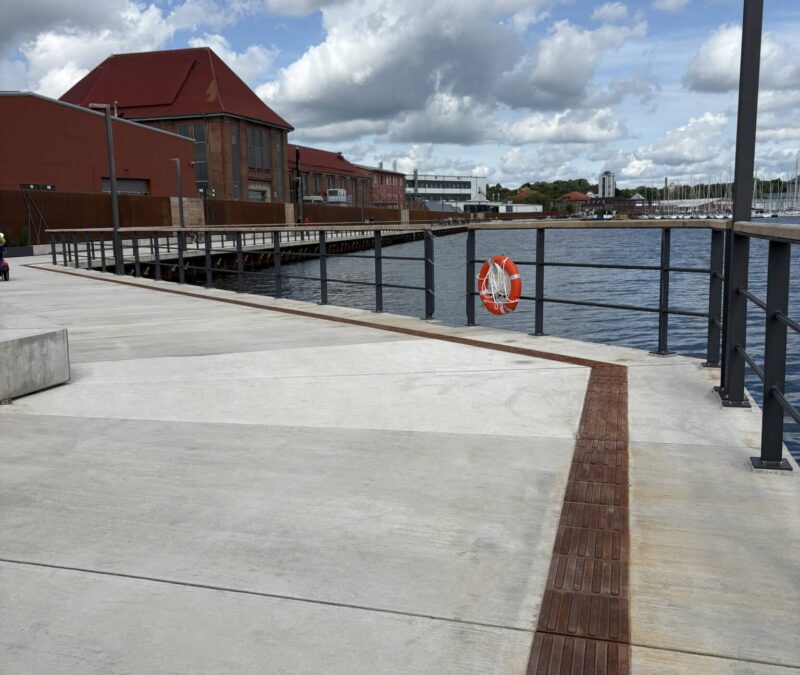

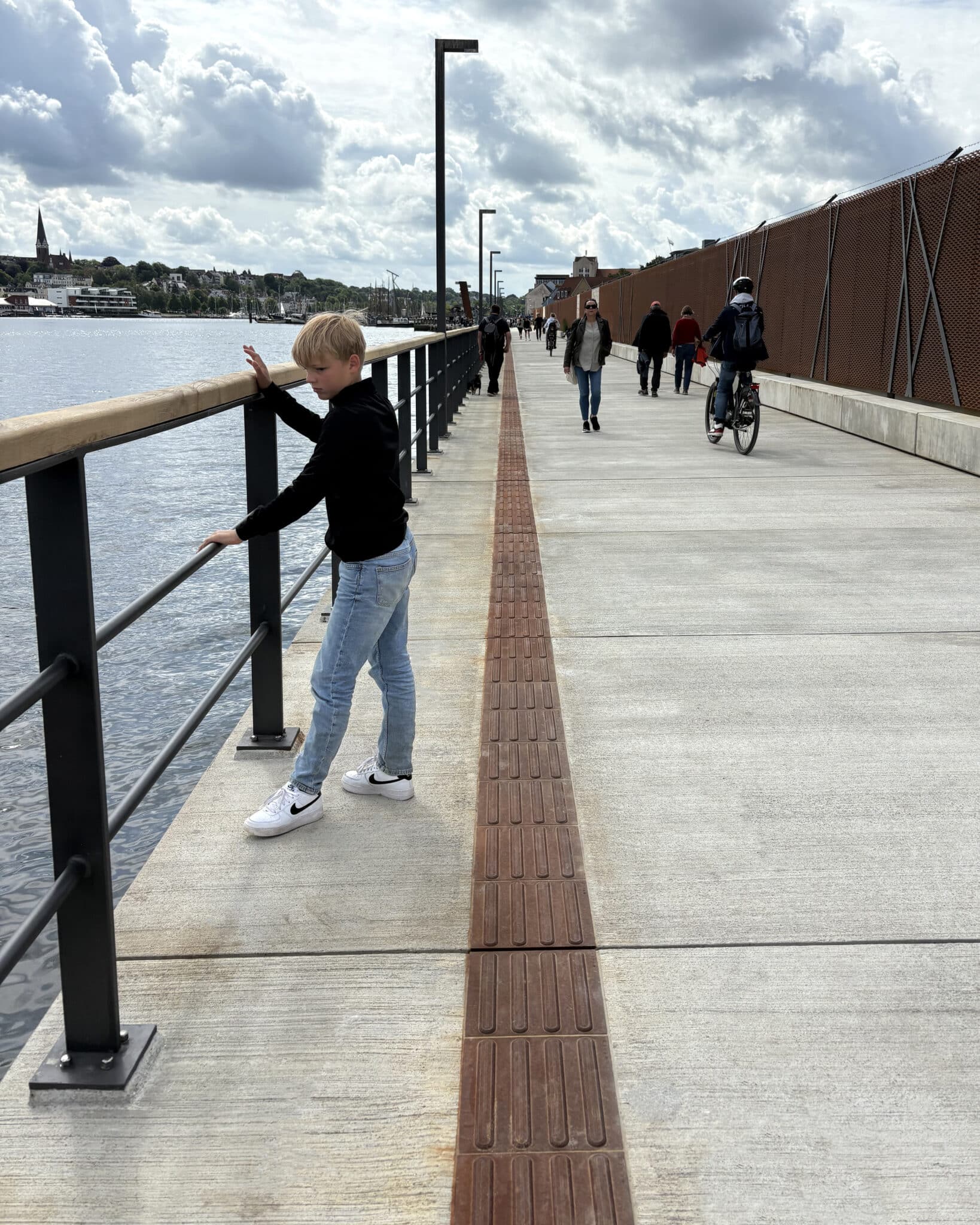

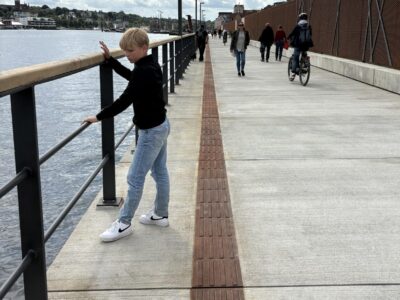

Guide lines can be used for many purposes. They can mark a route across an area, mark a change from pavement to roadway, indicate bus stops and more. There will be a particular need to establish the system at traffic hubs and city centers with open squares and pedestrian areas.
Pictoform® 36 Cast iron latch is produced in sizes:

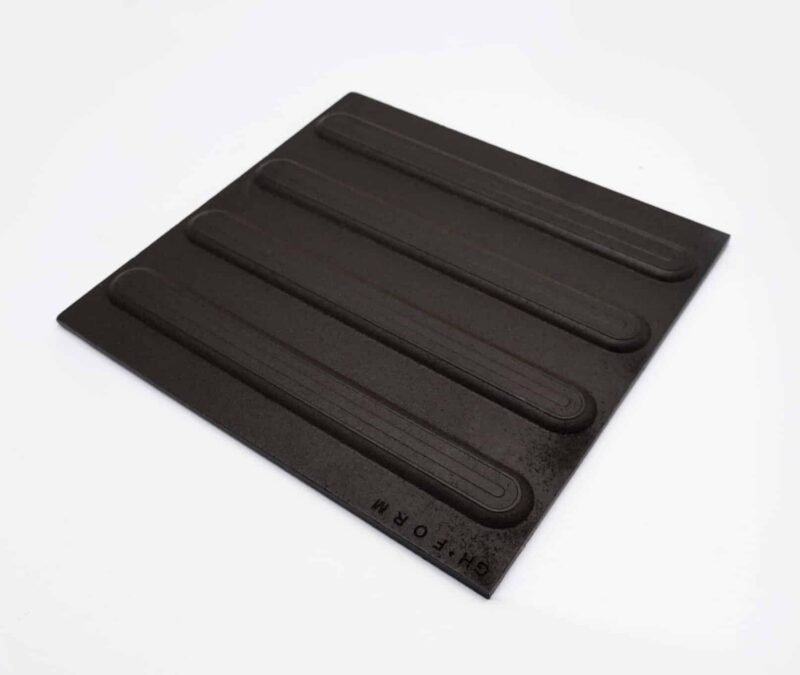

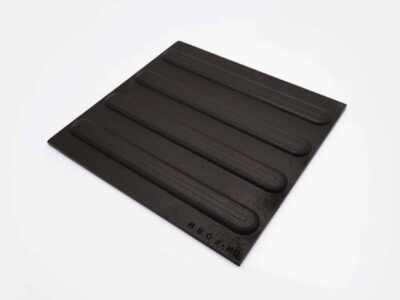

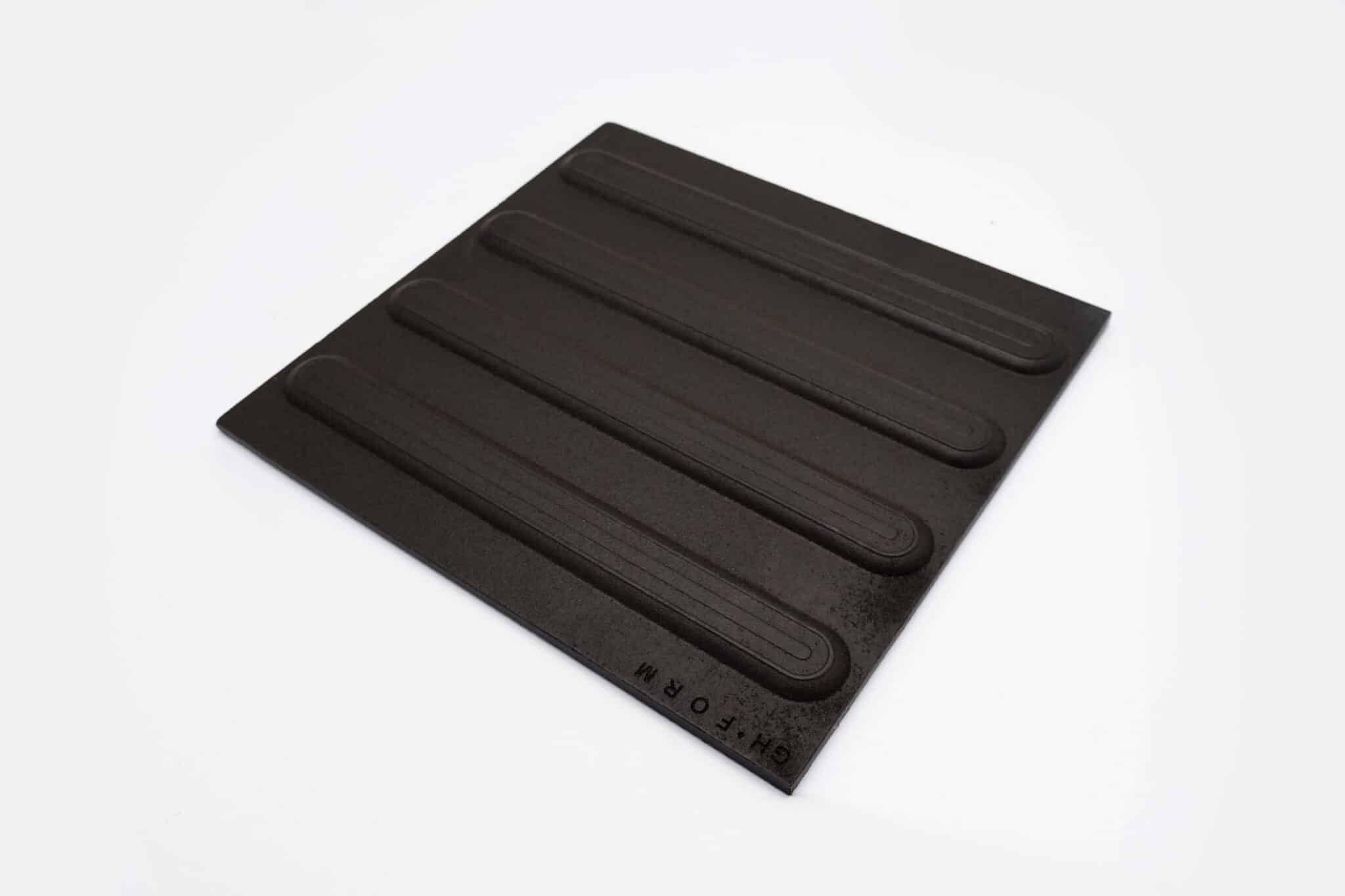

> L 300 x W 300 x H 8 mm / Tile with 4 x 36 mm guide line
> L 350 x W 350 x H 8 mm / Tile with 5 x 36 mm guide line
> L 400 x W 400 x H 8 mm / Tile with 6 x 36 mm guide line

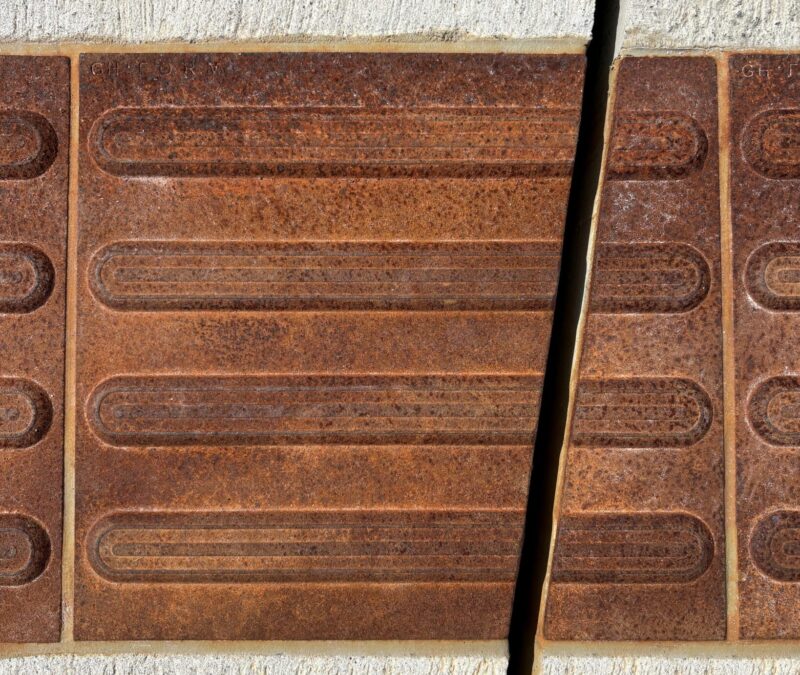

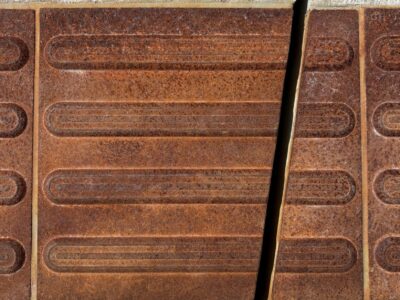

A tile is an 8 mm thick cast iron plate where the underside is cast with grooves for optimal adhesion. The top side is identical to the rest of the tile product range.
Pictoform®36 elements meet the requirements of the EU guideline ISO/DIS 21542 for guidance lines.
The cast iron patinates to a deep brown tone. The dark color of cast iron corresponds approximately to NCS code S6020-Y70R. To meet accessibility requirements, there must be a lightness contrast of 0.4 compared to the surrounding coating.
Our Pictoform® cast iron guardrails are EPD certified and developed according to recognized European and international standards, including the requirements of EN 15804. The guide rails are cast in 100 % recycled iron, so the carbon footprint is minimal.
