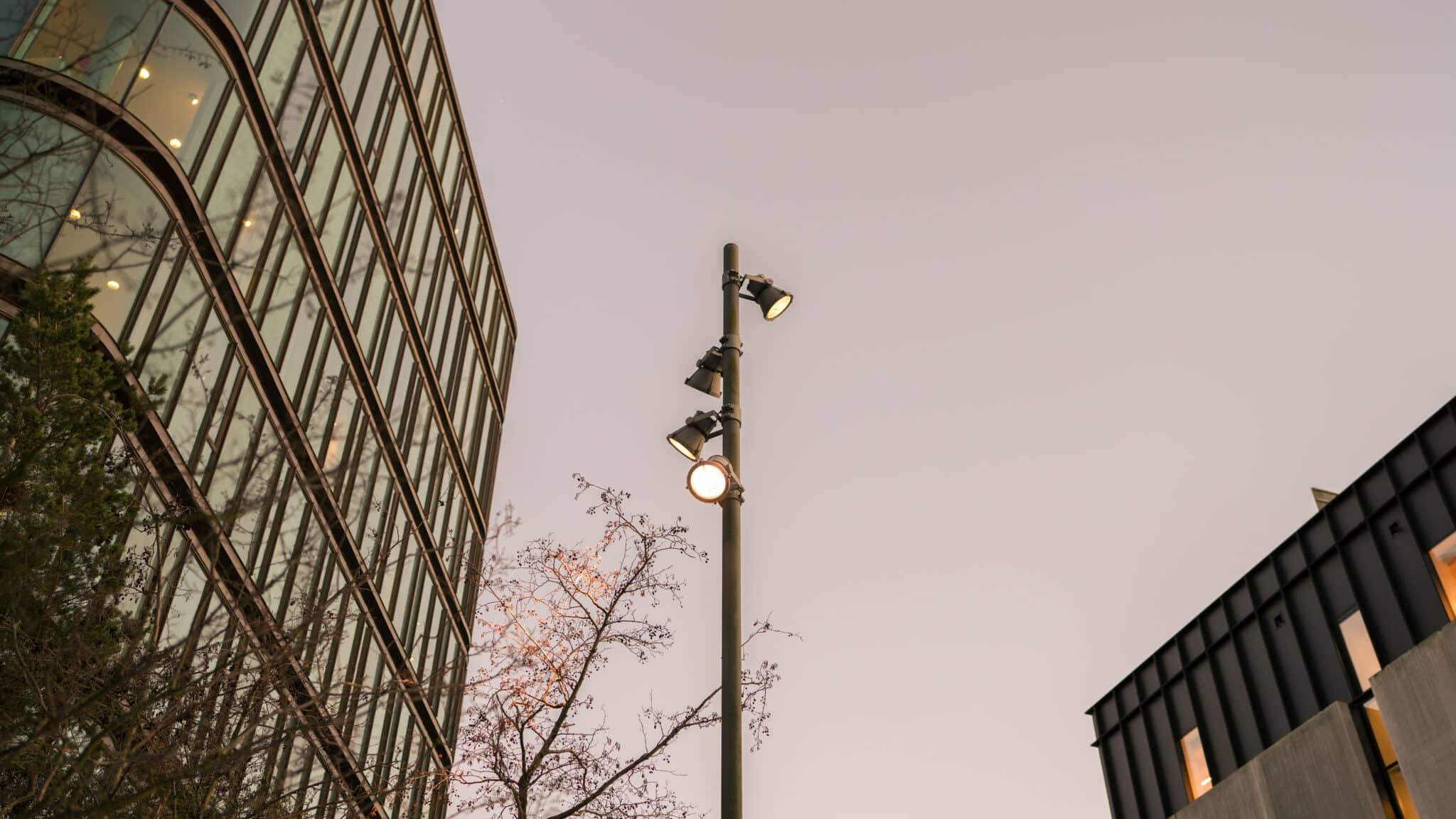

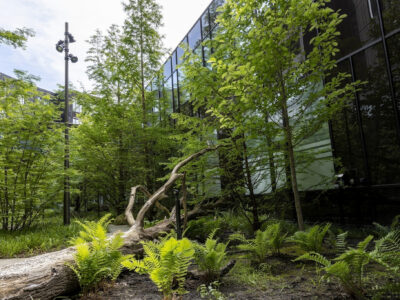

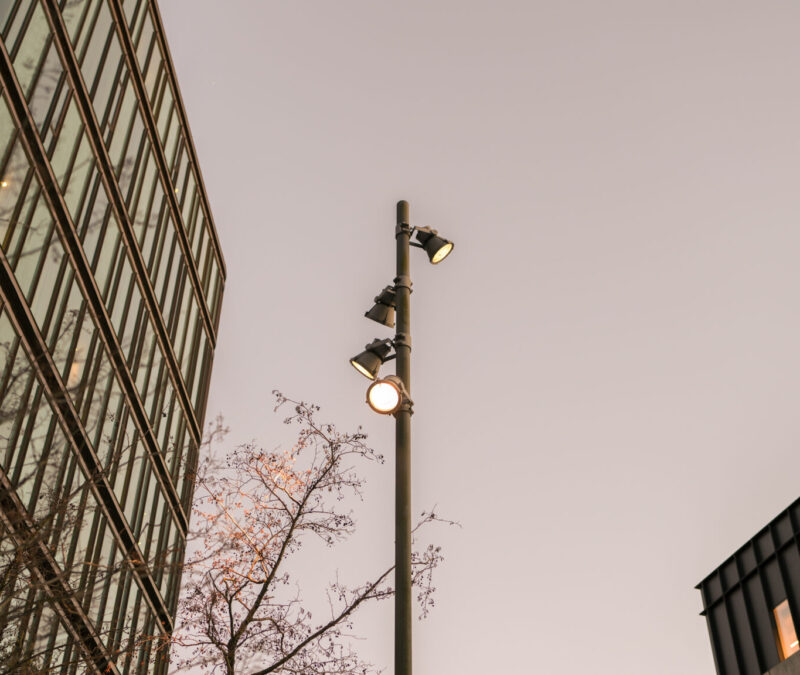

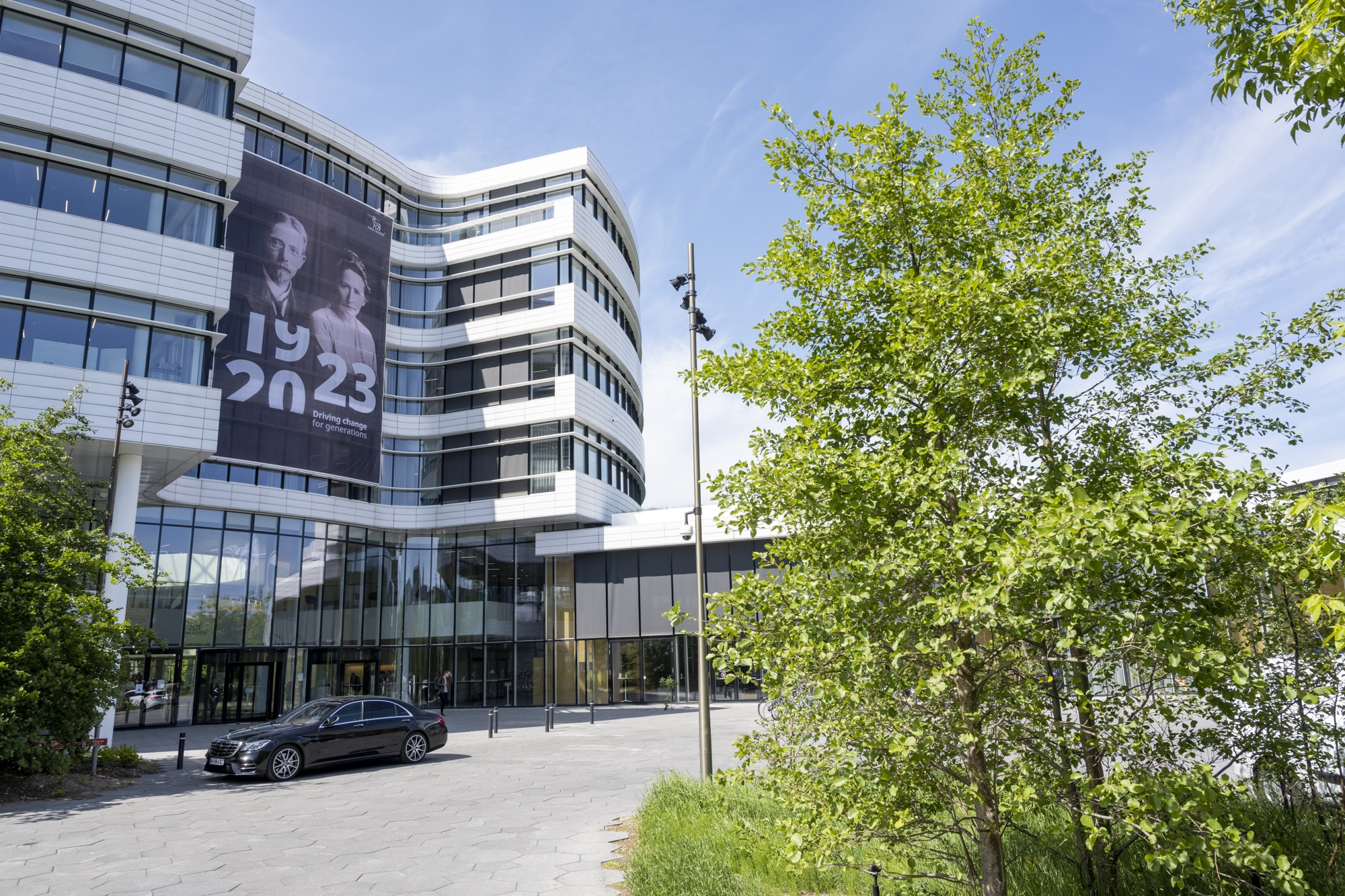

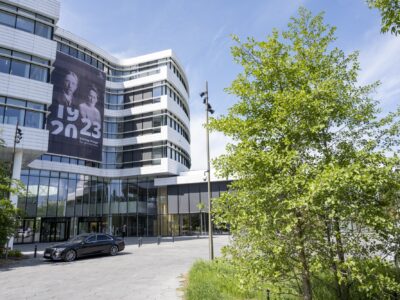

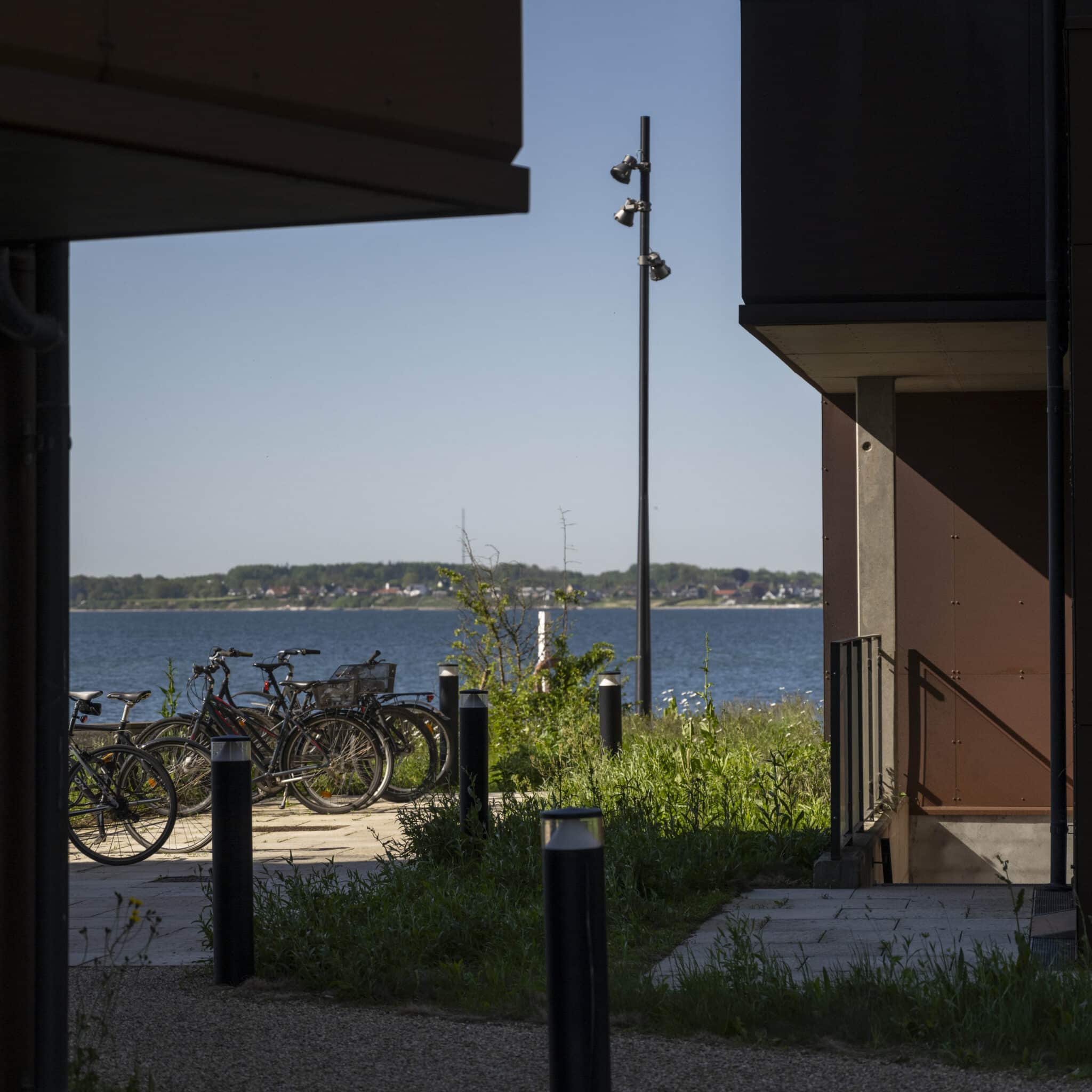

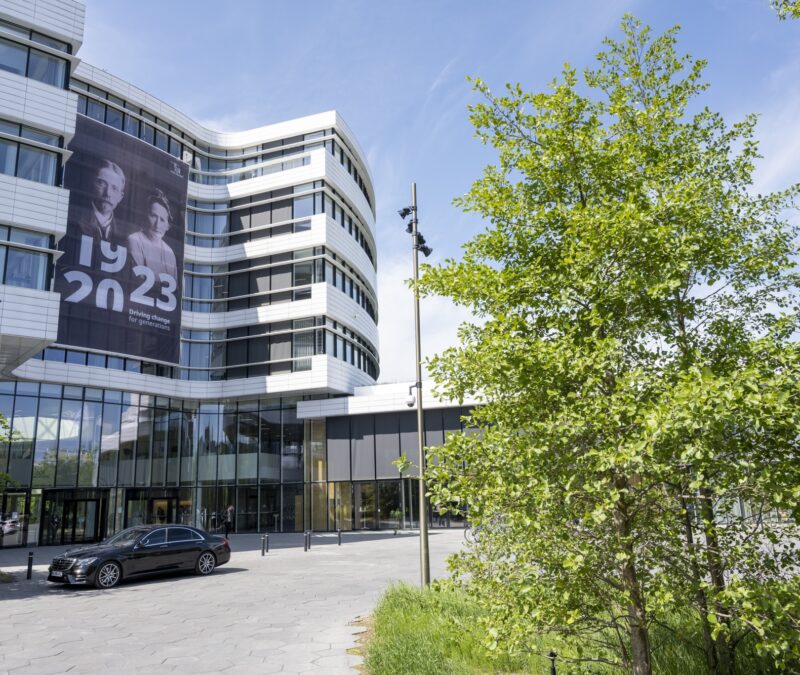

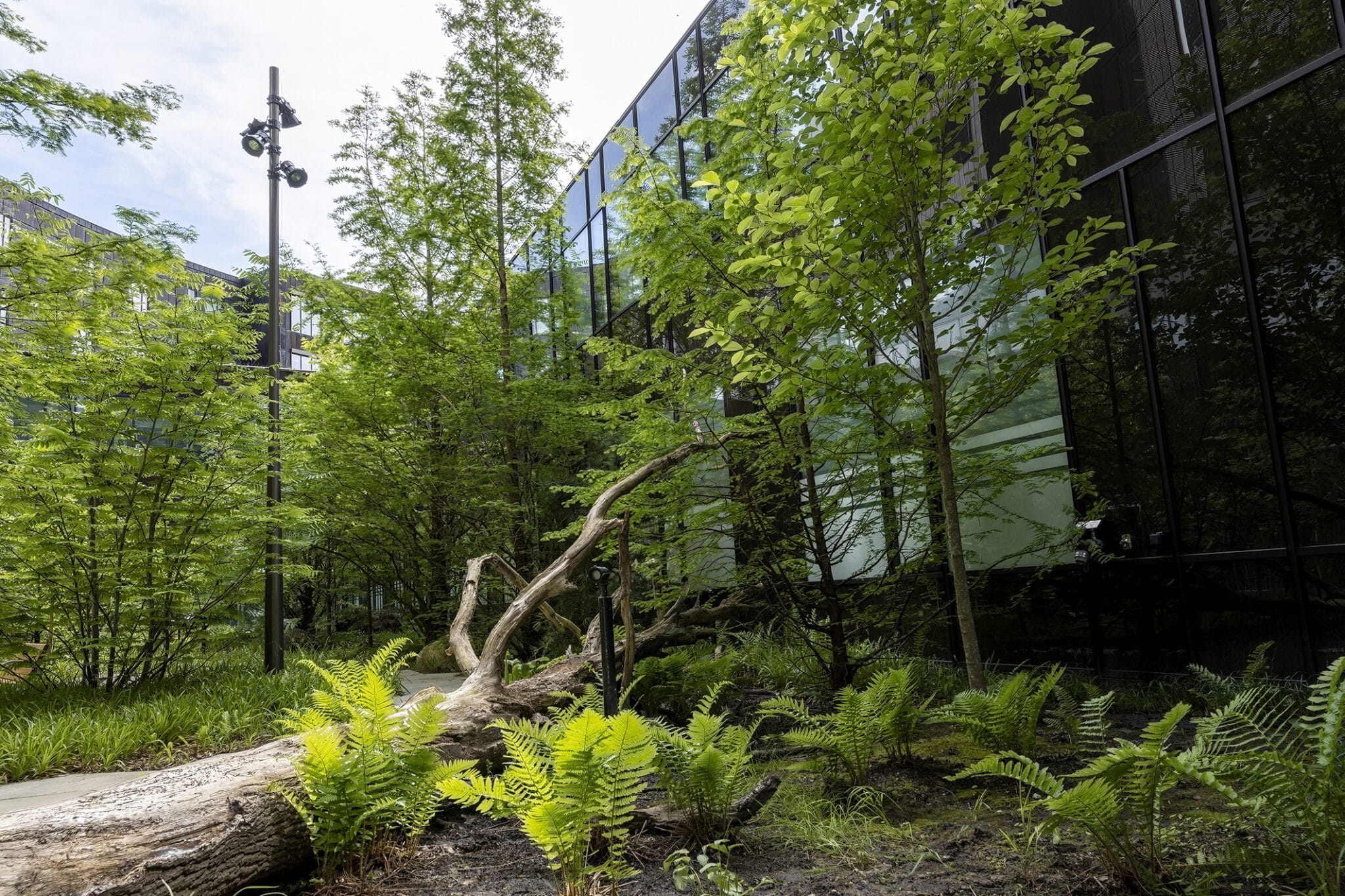

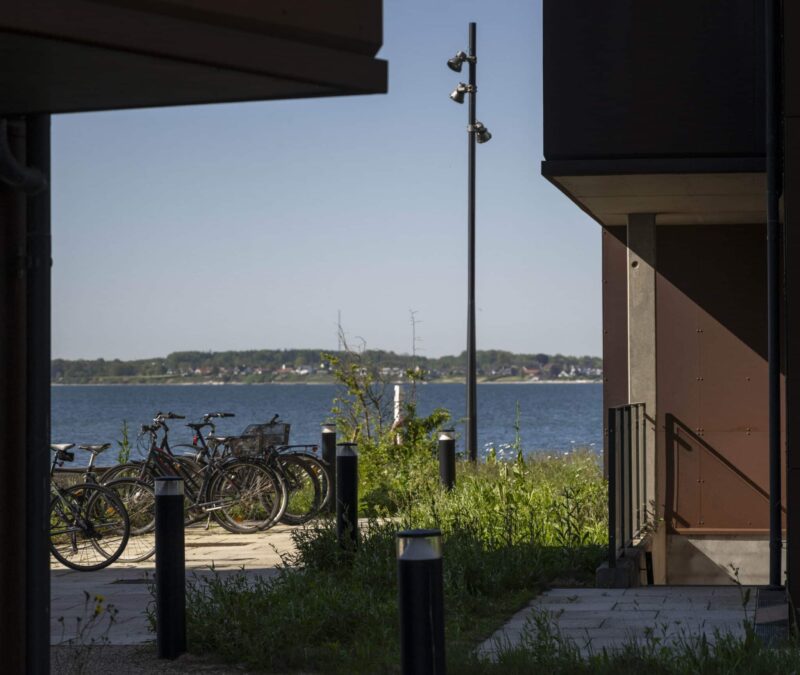

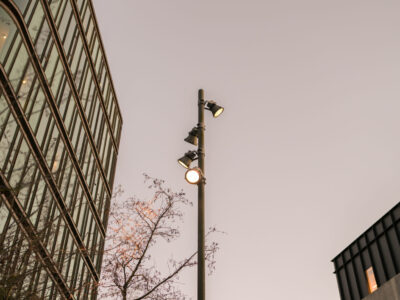

The High Light light pole is designed as a distinctive and functional element in urban spaces. It is made of aluminium, aluminium anodised in natural, dark bronze and black, and can also be powder coated in all RAL colours. With its robust lower part, the pole can carry multiple spots, providing flexible lighting options.
Available in four heights: 5, 7, 9 and 11 metres, the light pole combines a cylindrical base and top with a conical centrepiece to create an elegant and slim silhouette.
The materials are recyclable and the aluminium anodised surface can be used directly in new production at the end of its service life.
The luminaire is iGuzzini Maxi Woody Compact with a dimmable 36-watt LED light source. Each pole can be fitted with 1 to 4 spots.
The service cover is long and can accommodate two separate mast inserts with a securing element. The mast is made of 4 mm aluminium and is mounted with a double-welded, cast aluminium flange and heavy-duty bolts to a hot-dip galvanised wing foundation.
Standard wing foundations in hot-dip galvanised steel are stocked and project-specific foundation proposals can be prepared as required.
Item number
No SKU available
Material
Aluminium
Dimension

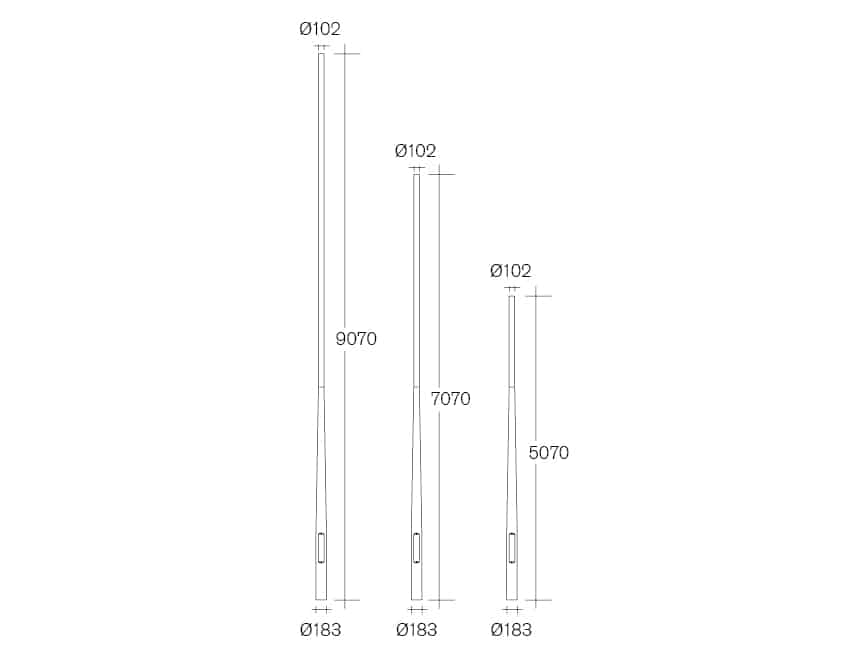

H 5000 mm x Ø183 / Ø102 mm, H 7070 mm x Ø183 / Ø102 mm, H 9070 mm x Ø183 / Ø102 mm, H 11000 mm x Ø183 / Ø102 mm
Assembly
The wing foundation is set in damp concrete, 200 mm below ground level. The lamp is installed after the paving is complete and levelled with bolts.
Optional extras
Aluminium anodised in natural, dark bronze and black. Powder coated in all RAL colours. Number of spots.
Additional information
The luminaire in the High Light column is iGuzzini Maxi Woody Compact with a dimmable 36 Watt LED light source.
The High Light light pole is designed as a distinctive and functional element in urban spaces. It is made of aluminium, aluminium anodised in natural, dark bronze and black, and can also be powder coated in all RAL colours. With its robust lower part, the pole can carry multiple spots, providing flexible lighting options.
Available in four heights: 5, 7, 9 and 11 metres, the light pole combines a cylindrical base and top with a conical centrepiece to create an elegant and slim silhouette.
The materials are recyclable and the aluminium anodised surface can be used directly in new production at the end of its service life.
The luminaire is iGuzzini Maxi Woody Compact with a dimmable 36-watt LED light source. Each pole can be fitted with 1 to 4 spots.
The service cover is long and can accommodate two separate mast inserts with a securing element. The mast is made of 4 mm aluminium and is mounted with a double-welded, cast aluminium flange and heavy-duty bolts to a hot-dip galvanised wing foundation.
Standard wing foundations in hot-dip galvanised steel are stocked and project-specific foundation proposals can be prepared as required.
SLA Architects
Stig L. Andersson is a Danish architect and landscape architect, and the founder of SLA, a leading architectural firm specialising in landscape architecture and urban design. His work combines materiality, light and atmosphere to create functional and aesthetic solutions.
