Design / Architect Kristine Jensen

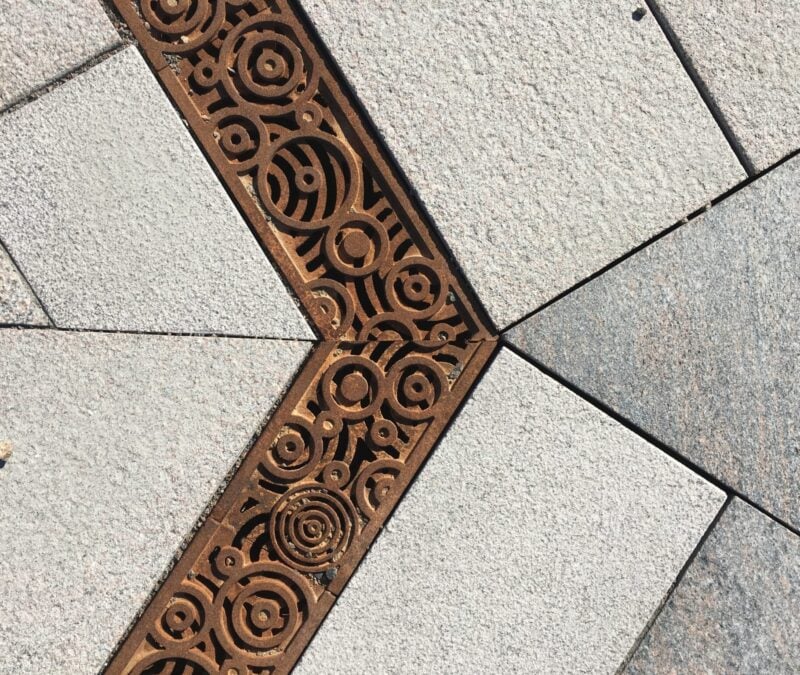

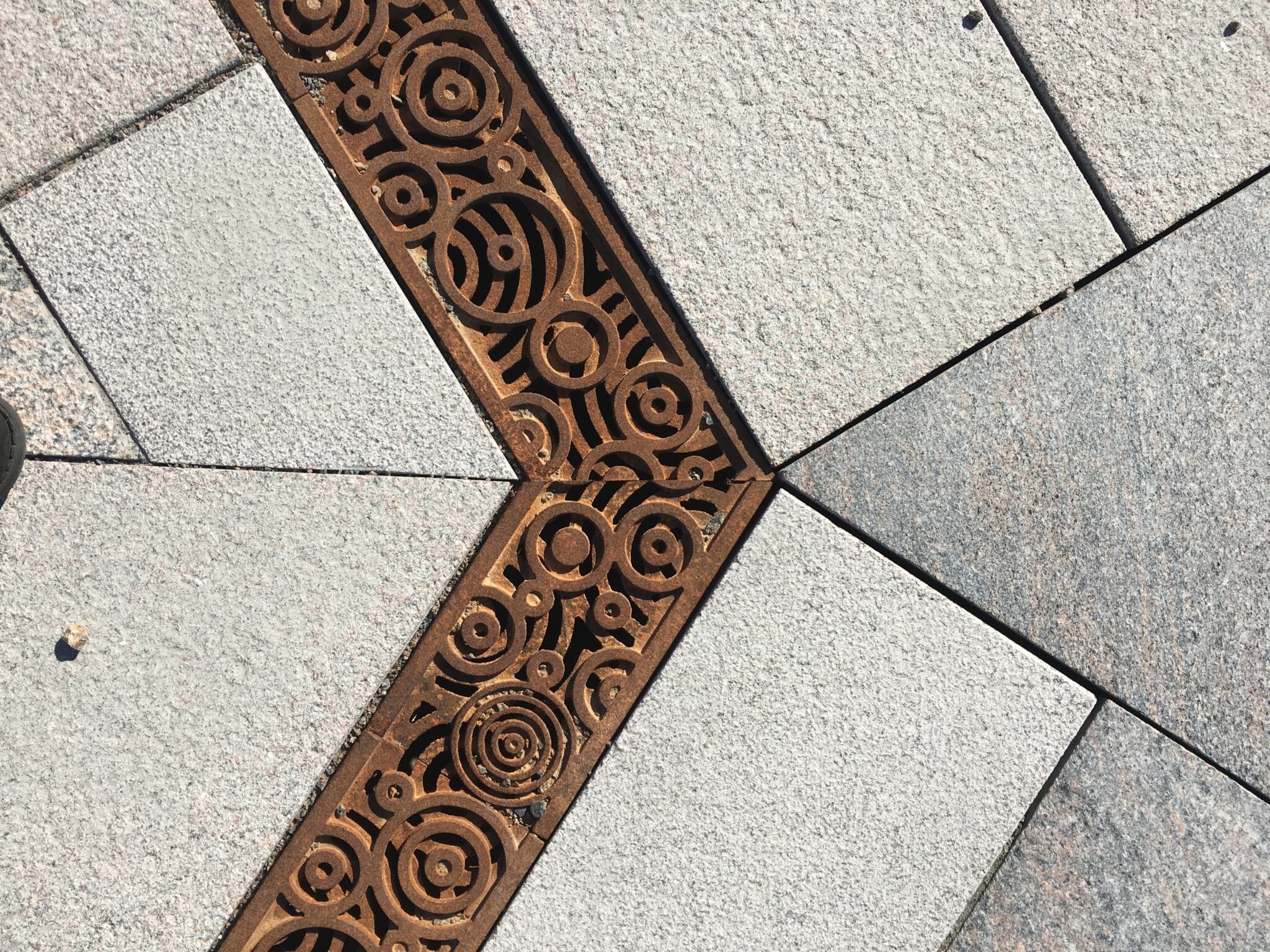

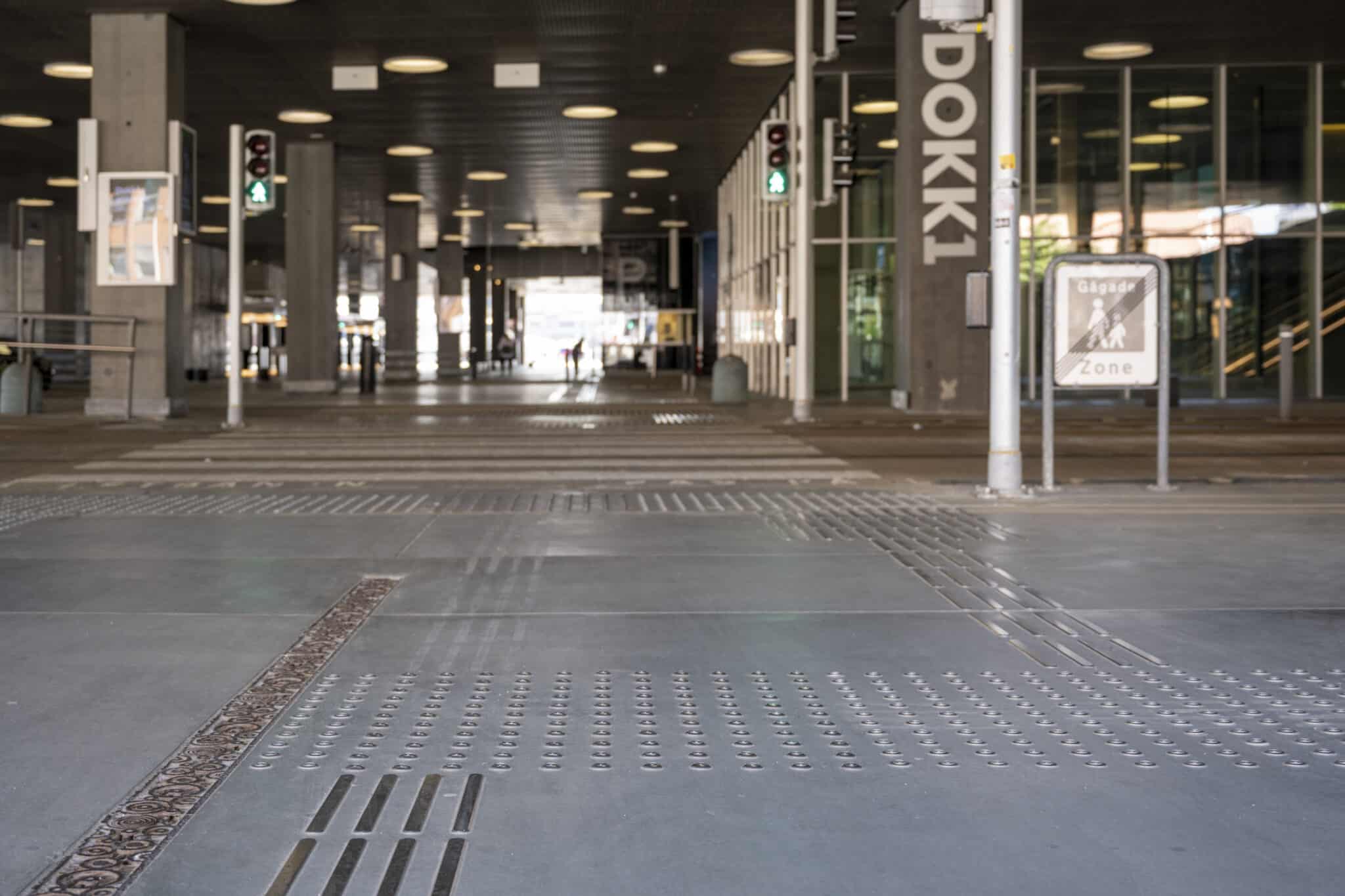

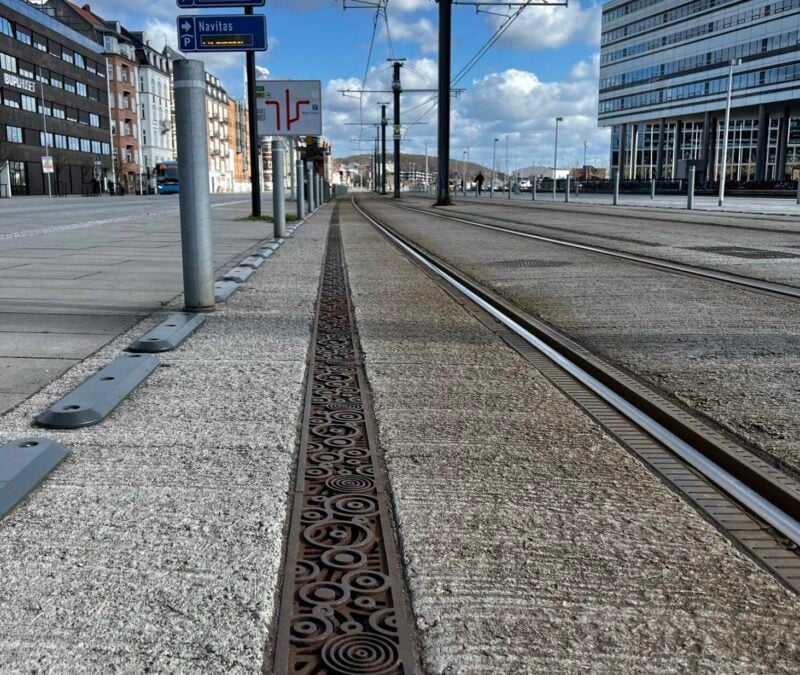

The Orbit Linear Drainage Grate is made of SG iron and designed to withstand heavy loads from vehicles. The grate has a width of 140 mm and is available in untreated cast iron.
To ensure a stable installation, the grate is secured with concealed stainless steel springs that hold it firmly in place. The design conceals the underlying drainage channel, allowing for an even surface right up to the edge of the grate. When installed in asphalt, the channel can be equipped with a steel frame on one or both sides for extra strength.
The Orbit Line Drainage Grating is EPD documented according to EN 15804, confirming the environmental sustainability of the product.
Item number
KJ115501
Material
Untreated cast iron
Dimension
W 140 x L 500 x H 30 mm
Assembly
Download installation instructions
Optional extras
Stainless steel frame or cast iron frame.
Weight
5.6kg.
Additional information
All grates can be combined with LED lighting
The Orbit Linear Drainage Grate is made of SG iron and designed to withstand heavy loads from vehicles. The grate has a width of 140 mm and is available in untreated cast iron.
To ensure a stable installation, the grate is secured with concealed stainless steel springs that hold it firmly in place. The design conceals the underlying drainage channel, allowing for an even surface right up to the edge of the grate. When installed in asphalt, the channel can be equipped with a steel frame on one or both sides for extra strength.
The Orbit Line Drainage Grating is EPD documented according to EN 15804, confirming the environmental sustainability of the product.
